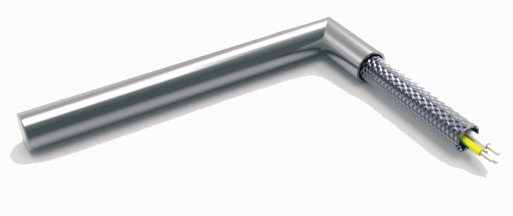

Heating cartridges

H.06. - diameter 6,5-20mm 100-3 000W

Download

• Datasheet

Technical parameters

• diameter: heating cartridges are supplied in a circular section of diameter: 6,5; 8; 10; 12,5; 16; 20mm
• connection type: heating cartridges are supplied in threadless design, but also with connection thread or flange
  • threadless
  • metric threads M10x1; M12x1,5; M14x1,5; M16x1,5; M18x1,5; M20x1,5; M22x1,5; M24x2; M27x2
  • inch threads G1 ", G3 ", G1"
  • attachment flange
  • with reversed threaded flange
• electric outlets: heating cartridges are supplied with various types of electric conductor connection:
  • nickel-plated outlets
  • with inner conductor connection
  • with outer conductor connection
  • with silicone cable
  • cable with metal protection brading
  • cable in flexible metal hose
• electric connection:
  • one-way
  • both-way

Specification

Heating cartridges are designed for use in wide range of industrial applications, mainly for form and injection molding machines heating, heating of machine part, etc. Heating cartridges are supplied in wide range of designs and can be subject of individual modifications according to customers requirements. They are supplied according to mentioned parameters.
