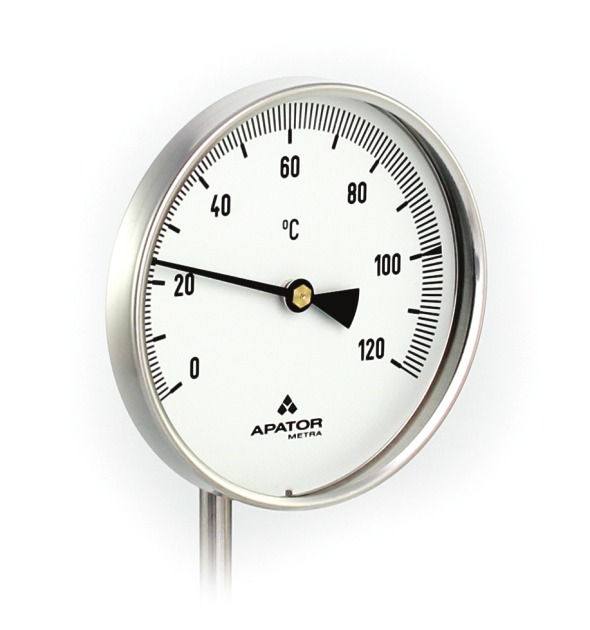

Bimetallic thermometer TR and TÚ

01. - diameter 60, 100, 120mm bottom, back connection all-stainless steel design

Download

• Datasheet

Description

• head made of stainless steel 17 240/1.4301
• stem made of stainless steel 17 248/1.4541
• glass inspection hole
• head surrounding temperature -30+110°C
• thermometer is supplied without well
• back connection TR (straight thermometer)
• bottom connection TÚ (angular thermometer)

Application

• heating and sanitary technologies
• heating management, power enginnering
• food industry
• chemical engineering
• hydraulics

Technical parameters

• case diameter: 60, 100, 120mm
• temperature ranges: -30+50, 0-120, 0-160, 0-200, 0-350, 0-450°C
• stem length: 45, 60, 100, 160, 250, 400, 630, 1000, 1500mm
• stem diameter: 8mm up to length 400mm 10mm up to length 630mm
• accuracy class: ±2%

Specification

Technical thermometers with bimetallic measure system are universally applicable devices for local temperature measurement in most industries.

Thermometers are designed for measurement in any position and for less demanding conditions.

Thermometers are produced with various stem lengths, as mentioned in the technical documentation.

Should the stem be protected from high pressures or aggressive mediums, it is necessary to use a thermowell. Standard thermowells available- steel PN6, stainless steel PN25 and PN40, special wells for high paramaters according to DIN or ON standards.
