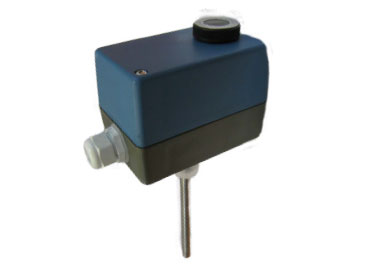

Stem thermostat THS2
C.1.19. - protection IP 65; stainless steel well
Description
- stem of the thermostat is a temperature sensitive element, which is formed by brass anticorrosive dilated tube
- thermal dilatation tube is transmited by invar rod through leverage on the switching mechanism, which is located in a waterproof rod
Technical parameters
- regulatory range: 0-40°C, 0-90°C, 0-120°C
- contact load: 16(4)A/240VAC
- stem length: 100 mm, individual
- stainless steel well
- thread: G1/2
- number of terminals: 3
- protection: IP 65
- control knob
- cased regulation
Specification
Stem thermostates are temperature-dependent single-pole switches based on the principle of different temperature expensibility of metals. They are designed for electric circuit switching, however not as the main switch. The core of these thermostats is a reliable mechanical system, that does no power consumption itself.
Compared thermostats THS is used here higher protection IP 65. Thermostat is supplied with stainless steel well that is suitable to regulate all the aggressive media. They are known for significantly low operational and maitenance costs compared to electric systems.
Technical specification are subject to change without prior notice. Images are for information only
