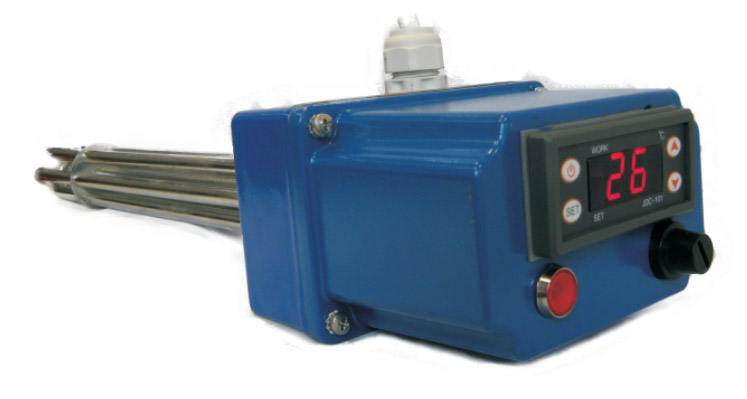

Heating element with digital regulation TRG 31
H.01.3 - type TRG 31 1 500-12 000W
Description
- heating element with digital regulation including thermal fuse
- connection material: steel, brass, stainless steel 17 248/1.4541
- rods material: steel, brass, stainless steel 17 248/1.4541, Incoloy 800
Application
- food industry
- mechanical engineering
- power engineering
- heating industry
- hydraulics
Technical parameters
- power: 1 500, 2 000, 2 400, 3 000,4 000, 4 500, 6 000, 7 500, 9 000, 12 000W
- regulatory range/ T fuse: 0-90°C/110°C
- adjustable switch difference: 1-16°C
- compressor delay: 0-9 min
- thread: M48x2, G6/4 or individual
- power supply: 230/400V
- protection: IP 54
Specification
Heating element consists of two parts: heating part is made of three U-shaped heating rods (made of mentioned materials) which are connected to the head by M48x2 or G11 . Terminal board is made of Al cast with IP 54. Other component part parts are a regulatory digital thermostat in mentioned ranges, thermal fuse taht protects the heating element from overheating and glow tube to indicate the current state (heating/not heating). Electric supply is possible from both sides through the OBOVTEC bushing.
Heating element is designed for direct heating of any liquid (material of the element must be suited to the medium). During operation the element must be constantly immersed in the liquid up to the head. Suitable for operations, where immediate thermoregulation is essential.
