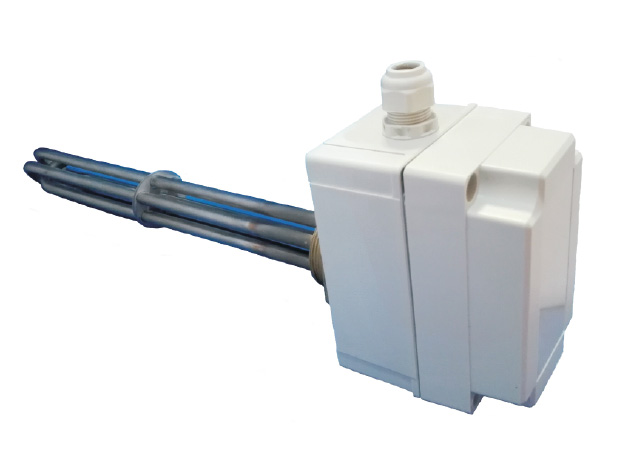

Heating element with regulation TRG 13
H.01.02 - type TRG 13 1 500-12 000W
Description
- heating element with inbuilt regulation including thermal fuse
- connection material: steel, brass, stainless steel 17 248/1.4541
- rods material: steel, brass, stainless steel 17 248/1.4541,
- Incoloy 800
Application
- food industry
- mechanical engineering
- power engineering
- heating
- hydraulics
Technical parameters
- power: 1 500, 2 000, 2 400, 3 000, 4 000, 4 500, 6 000, 7 500, 9 000, 12 000W
- regulatory range/ T fuse: 0-40°C/55°C; 7-77°C/99°C; 20-127°C/150°C; 30-85°C/110°C; 50-150°C/180°C
- thread: M48x2, G6/4 or individual
- power supply: 230/400V
- protection: IP 66
Specification
Heating element consists of two parts. Heating part is made of three U-shaped heating rods (made of mentioned materials) which are connected to the head by M48x2 or G11 thread. Terminal board is made of plastic cast with IP 66. Other component parts are a regulatory capillary thermostat in mentioned ranges, thermal fuse that protects the heating element from overheating, glow tube to indicate the current state (heating/not heating) and a regulatory knob with marked scale. Electric supply is possible from both sides through the OBO-VTEC bushing.
Heating element is designed for direct heating of any liquid (material of the element must be suited to the medium). During operation the element must be constantly immersed in the liquid up to the head. Suitable for operations, where immediate thermoregulation is essential.
Design „S” : not transparent case
Design „L”: transparent case with ON/OFF indicator
