Flowmeter LZZ, LZK, LZD

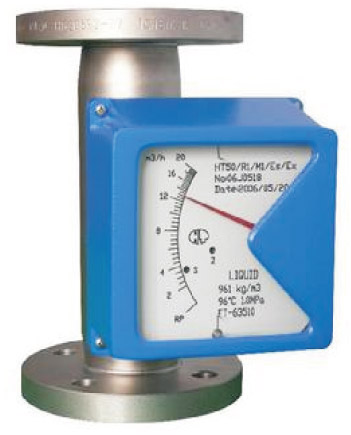

F.12. - LZZ-side indicator; LZK-el.contact; LZD-wire version

Download

• Datasheet

Description

• case: steel
• version: with side indicator LZZ, with el. connector LZK, wire version LZD
• any position of installation
• option of liquid (water) and gases (air) measuring

Application

• petrochemical industry
• chemical industry
• food industry
• mechanical and civil engineering

Technical parameters

• diameter: 15, 25, 40, 50, 80, 100, 150
• measuring range: liquid 0,025; 0,04; 0,06; 0,1; 0,16; 0,25; 0,4; 0,6; 1; 1,6; 2,5; 4; 6; 10; 16; 25; 40; 60; 160m ; gases 0,7; 1,1; 1,8; 2,8; 4; 7; 10; 16; 30; 45; 70; 110; 160; 250; 400; 750; 1100; 1800; 2500m
• connection: flange according the JB/T81-94)PN1,6,PN2,5) or JB/T82.2-94 (PN4, PN6,3)
• environment temperature: -20 + 50°C
• media temperature: -80+120°C
• PN: 1,6 MPa
• El.output: 2 wires 4-20mA, 3 wires 0-10mA, 4 wires 0-20mA, 4-20mA
• EX - version: IbIICT4 with LB830S with safety protection
• Power, el. contacts (LZK): 24V DC ±20%, 12V DC± 10%

Specification

Flowmeters LZZ, LZK, LZD with steel case are suitable for the measurement the flow of liquid and gases into piping. This series of the flowmeters come in several options. With side indicator (LZZ), with electrical contact (LZK) or with el. output according standard signals 0-10, 4-20mA 2/4 wire version ( LZD). LZ.. flowmeters have simple construction, reliable service with low pressure lost and are supplied in various modifications: EX version, stainless steel, with a condensation container etc. Installation in all positions.
