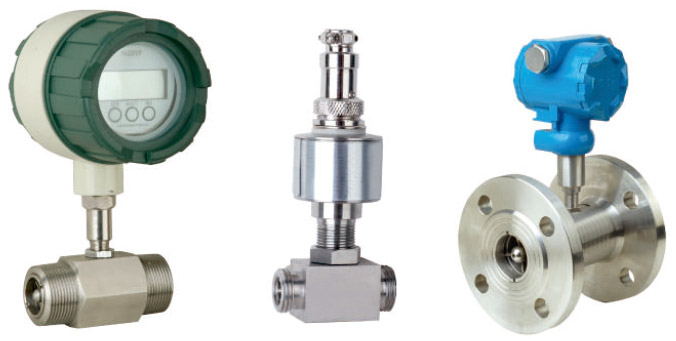

Flowmeter HD005

F.17. - turbine flowmeter DN2...300, 10l-1800m3/h

Download

• Datasheet

Description

• threaded or flanged connection
• precalibrated rotor
• design with / without local display
• rotor from karbid wolfram
• all stainless steel case
• atypical design - clamp connection,
• high-pressure, HART communication...

Application

• petrochemical industry
• chemical industry
• food industry
• metallurgy

Technical parameters

• DN: 2,4,6,10,15,25,40,50,80,100,150,200,250,300
• measuring range from 10l/h to 1800m3/h
• accuracy from: 0.2, 0,5, 1%
• PN: <40MPa
• case: stainless steel 304 (or 316)
• bearing and axle: karbid wolfram
• rotor: stainless steel 304 (or Alloy CD4Mcu )
• output: 4-20mA, 0-10 V, HART
• IP65

Specification

Turbine flowmeters HD005 series are design for flow measurement of low viscosity fluids. They can be used for the media in the temperature range -20 till +120°C

They can be used in petrochemical, chemical and food industry and also in metallurgy or scientific researche for measurement and regulation.

It is to choose a pulse or analog (current, voltage) output. It is possible to choose different ways for displaying.

Output signal is 4-20mA or 0-10V.

Level of protection is IP65.
