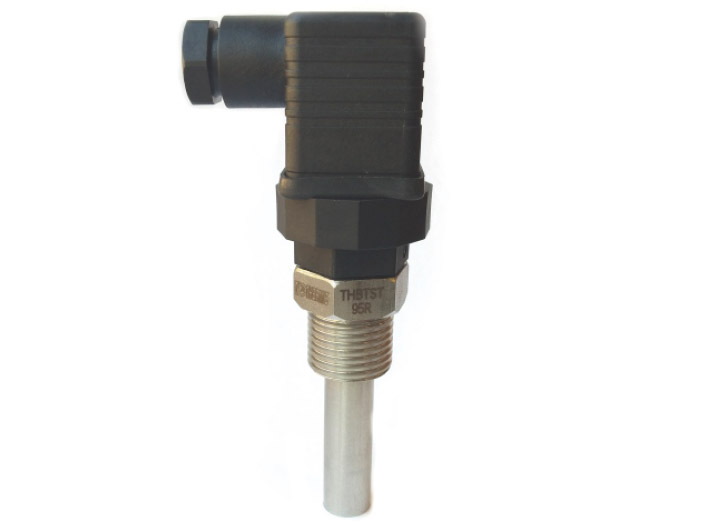

Bimetallic thermostat THBT with Pt100 sensor THBTST
C.1.23.
Description
- wide range of switch-on values
- high acuuracy, no need to charge, wide working range of surrounding temperature
- integrated construction, easy to install
Application
- chemical industry
- heating industry
- power engineering
- pharmacy
Technical parameters
- heat range: from 65 °C to 150 °C according to used sensor
- connection thread: G1/2 (G1/4, G3/4, M12x1,5, M20x1,5, M27x2, NPT) or on individual request
- possibility to extend with temperature sensor Pt100 ( THBTST )
Specification
Bimetallic thermostat THBT in compact and robust case can be extended with temperature sensor Pt100 ( THBTST ). Thermostats are suitable for direct mounting and also for mounting into thermowell. Thermostats are adjusted for specific switch-on / switch-off value from production and can not be changed by user later.
Sensors are suitable for wide range of applications in indusrty, food processing, air-conditioning systems, heating, hydraulic etc. (sensors for air temperature are used without thermowells due to quick responsese recieving)
Compact and robust case is suitable for wide range of applications, it is possible to provide variable connection threads on individual request. Magnesiumoxide guarantees high resistance against impacts and vibrations and also improves heat exchange and electrical insulation of sensor.
