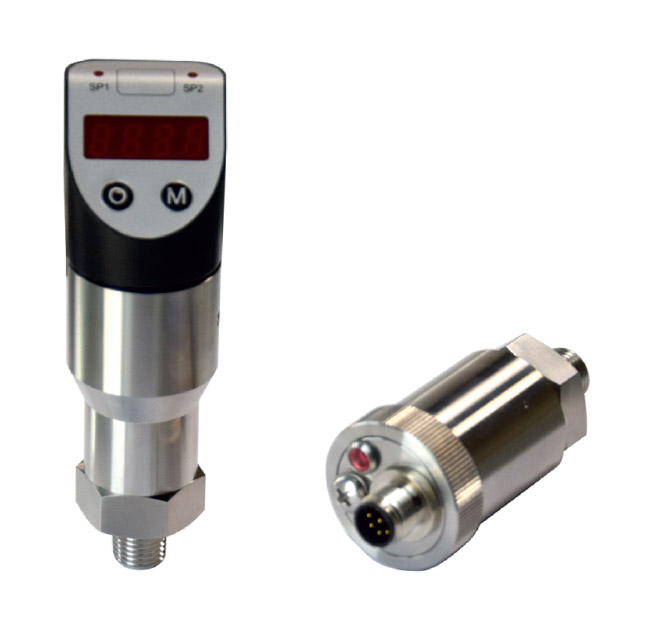

Electronic pressure switch THPS2


Electronic pressure switch THPS2



  • OLED display
  • Reverse voltage protected
  • Relay output
  • SS304 casing
  • Switch point setting


  • petrochemical industry
  • hydraulics
  • power-engineering

Technical parameters

  • Measuring range: 0...0,07 až 0...1000bar
  • A class of accuracy: ±0,5% FS (standard), ±0,25% FS
  • Operating Temperature: -20+60°C
  • Stability: ±0,25%
  • Pmax: 150% FS
  • Process connection: G1/4, G1/2, M20x1,5 NPT1/4, NPT½
  • Supply Voltage: 14~30Vdc
  • Rated relay load: max.1A
  • Overvoltage protection: 32Vdc
  • Coverage: IP65


THPS2 is intelligent pressure switch combining pressure measurement, local display and control together. The pressure switch has an easy-toread OLED display, quick setup, reaction and good electromagnetic compatibility for pressure control.

THPS2 allows the visually compile process pressure on display and switch the status of the contacts using the switch output and analog output. Output signals THPS2 are applicable for a wide range of applications. The use of THPS2 is very wide, used for pressure control in hydraulic systems on pumps, hydraulic and pneumatic equipment, power engineering, petrochemical industry, and so on.

Technical specification are subject to change without prior notice. Images are for information only
