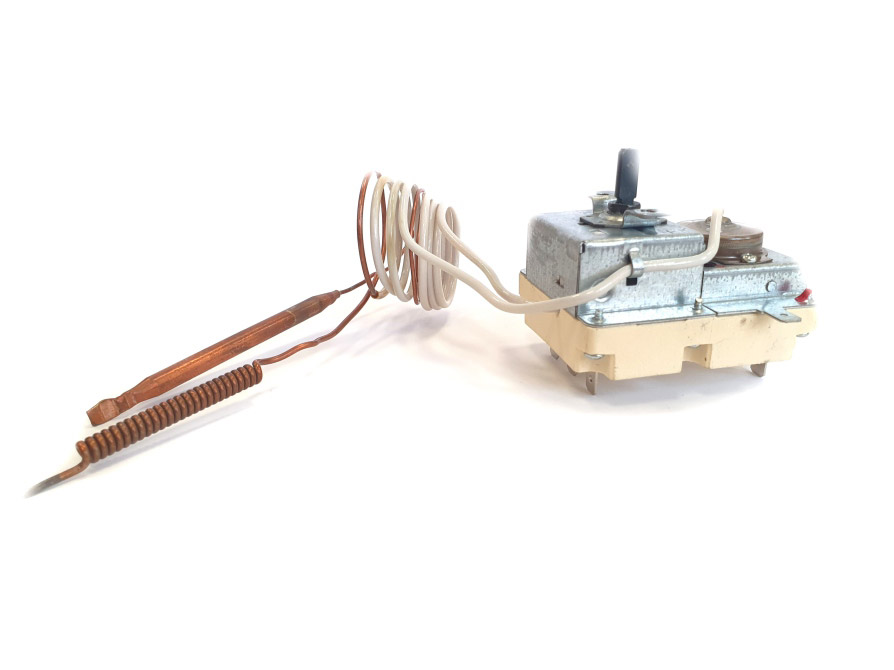

Thermostat combined with a fuse KDT
C.1.13. - manual reset, three-phase load 16(20)A / 400V
Description
- three-phase, manual reset
- material of capillary/sensor: Cu/stainless steel
- material of membrane: stainless steel
- connection: M4x8, FAST ON connector
Technical parameters
- range: 7-77, 30-85°C (TR) 95, 100, 110, °C (STB)
- s witching differencion: -4, -6,-10, -12°K (TR), -6, -8,-10°K (STB)
- switching load: 16/20A, 400V
- protection: IP 00
Specification
The combined thermostat with a fuse - KDT series automatically breaks the electric circuit after reaching the preset temperature, recloses in the event of a drop in temperature and continuously maintains the temperature of the medium by switching on / off positions. If the temperature around the temperature sensor reaches the value of the expansion temperature fixed by the manufacturer, the electrical circuit will be disconnected, whereby the fuse protects the device from overheating.
These thermostats can be used especially for boilers, electric boilers, storage tanks, reservoirs of solar systems, etc. It is suitable for controlling the temperature of liquid, gaseous or solid substances.
