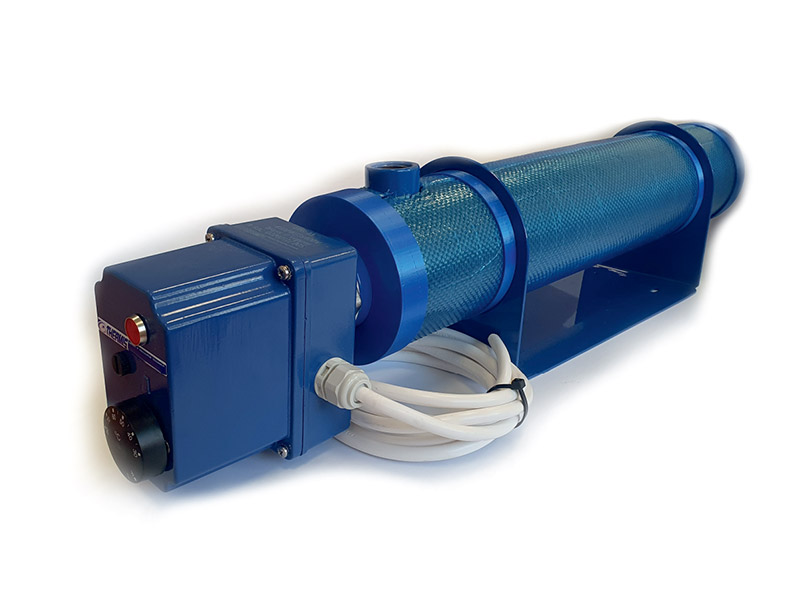

Flow heater TRGPOV 11 / 31 with regulation
H.01.05 - Power 1 500 - 12 000 W
Description
- flow heater with regulation TRGPOV 11, TRGPOV 31
- flow heater component TPOV
- connection: steel Dn25 G3/4
- heating rods: nickeled brass
Application
- accessory (supplement) to the solar system and heat pumps
Technical parameters
- power: 1500,...., 12000 W
- G6/4“ as connection for heating element
- DN 25 (connection G3/4“) for water (input / output)
- max. PN 6
- TRGPOV 11 - regulation range/ T fuse: 7-77°C/99°C; 30-85°C/110°C
- TRGPOV 31 - regulation range/ T fuse: 0-90°C/110°C
- power supply: 1x230V / 3x230V, 3x400V cable 2 m
- protection: IP54
Specification
Flow heaters are supplied in two versions TRGPOV11 with manual regulation and TRGPOV31 with digital regulation. TPOV is a separate heater body. Flow heater is intended for direct heating of liquid.
A heating element located in a cylindrical body is used to heat the liquid, which includes a manual / digital thermostat in the specified temperature range and a thermal fuse protecting the heating element from overheating, and a glow plug indicating the state (heating / not heating ) for TRGPOV 11, for TRGPOV 31 by signaling on the display. Electrical supply is possible from both sides via the OBO-VTEC bushing. The body must be constantly immersed in liquid during operation. Installation is possible both in vertical and horizontal position. The standard version with an output of up to 6.0 kW has a body length of 600 mm, and the extended version with an output of up to 12 kW has a body length of 850 mm
