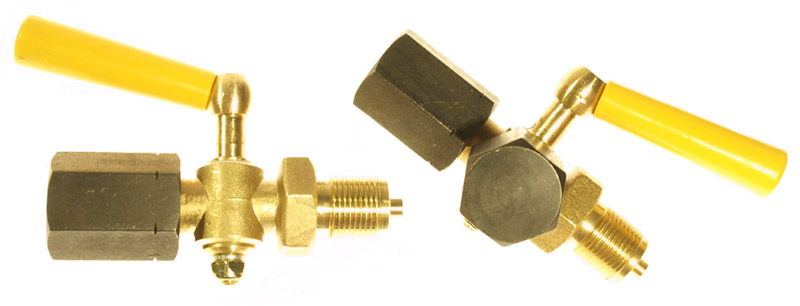

Pressure gauge cock
E.01.b - heating gases two-way, three-way PN 16
Description
- body material brass - 423223
- handle material - heat-resistant plastic
- connection material - carbon steel/brass
- technical gases design (16 262TP, 16 263TP)
- bleeding hole (16 262 TP)
- testing connection (16 263 TP)
Application
- heating industry
- air-conditioning
- gas industry
- power engineering
Technical parameters
- connection thread
DIN 16 262 TP: G1/2, M20x1,5
DIN 16 263 TP: G1/2, M20x1,5 - PN16 - 16 262 TP, 16 263 TP
- testing connection - M20x1,5L (16 263 TP)
Specification
Pressure gauge pin cocks of twoway or three-way design with socket connection are produced in accordance with DIN 16 262, 16 263 and EN 837-2 standards they are designed as a special closing armature for pressure gauges with flat sealing, for working pressures and temperatures.
Forged unit with threaded pin on the inlet side, modified for flat sealing. On the outlet side it is equipped with a socket for pressure gauge connection.
Two-way cocks are equipped with a side bleeding hole for bleeding during pressure gauges disassembly. Three-way cocks are equipped with a side duct for connection of control pressure gauge. The cone is attached from the bottom by a nut. The TP version is for heating gases (technical).
