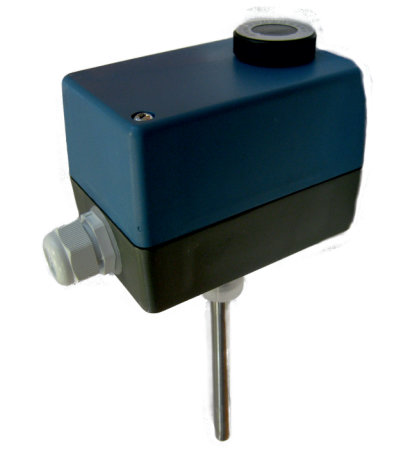

Stem thermostat THS3, THS4
C.1.19.a - with cased control THS3, with open control THS4
Description
- stem of the thermostat is a temperature sensitive element, which is formed by brass anticorrosive dilated tube
- thermal dilatation tube is transmited by invar rod through leverage on the switching mechanism, which is located in a waterproof rod
Technical parameters
- regulatory range: 0-90°C, 0-120°C, 100-120°C
- contact load: 16(4)A/240VAC
- stem length: 100, 160, 200mm, individual
- stem average: 8mm
- connecting thread: union nut G1/2
- number of terminals: 3
- protection: IP 65 (THS3), IP 54 (THS4)
- cased regulation THS3
- control knob external THS4
- ambient temperature: permanent - Tmax 85°C
- ambient temperature: permanent local not more than 5% area - 150°C
- ambient temperature: short-term local not more than 10s on 5% area - 200°C
Specification
Stem thermostates are temperature-dependent single-pole switches based on the principle of different temperature expensibility of metals. They are designed for electric circuit switching, however not as the main switch. The core of these thermostats is a reliable mechanical system, that does no power consumption itself.
Compared thermostats THS is used here higher protection IP 65 / IP 54.
Thermostats THS3, THS4 are supplied with a process connection using a union nut G1/2. They are known for significantly low operational and maitenance costs compared to electric systems.
Technical specification are subject to change without prior notice. Images are for information only
