Machinal thermometer TSR, TSU
A.1.09.a - scale 110, 150, 200mm straight, angular
Description

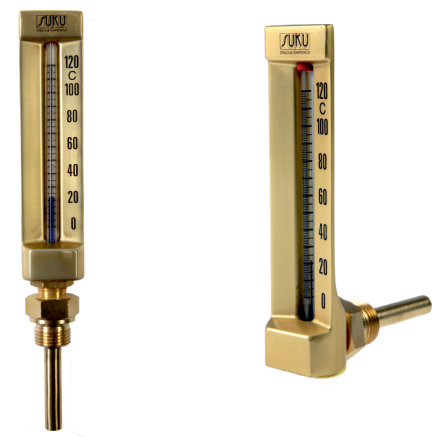

- straight design TSR2, TSR1, TSR7 angular design TSU4, TSU3, TSU9
- duralumin case with brass anodized finish
- ethanol filling
Application
- heating and sanitary technology
- petrochemical industry
- cooling industry
- light industry
- energetic industry
Technical parameters
- case: 110, 150, 200mm
- temperature ranges: -60+40, -30+50, 0-100, 0-120, 0-160, 0-200
- stem length: 30, 40, 63, 100, 160, 250, 400
- stem diameter: D10mm, d8mm
- accuracy class: according to DIN 16195
- process connection: M20x1,5, G1/2 B
Specification
Machinal thermometers display measured temperature using capillary system filled with organic fluid (coloured spirit). Designed into a wide range of industrial applications even into operation with higher demands on mechanical resistance. Machinal thermometers are supplied in wide scale of temperature ranges and stem lengths, in design with display panel 110, 150 and 200mm. Stem of thermometer has standard pressure resistance PN6. For higher pressures is necessary to insert thermometer into protection well, which has corresponding parameters.
Thermometres are supplied in straight or angular design. Stem length according to design from 30-400mm. Thermometers can be supplied even with stainless steel stem for higher chemical and pressure resistance PN25.
