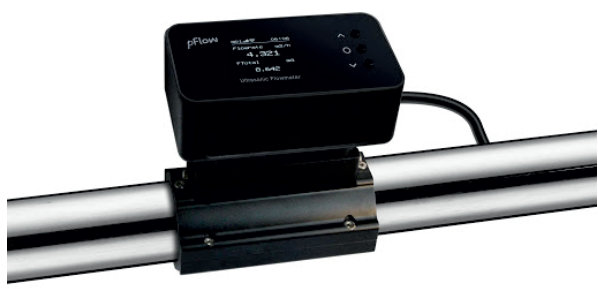

Ultrasonic flowmetter

F.15. - for pipe instalation type F3

Download

• Datasheet

Description

• process connection: by 4 screws
• pipe material: PVC, carbon steel, stainless steel, copper
• conection trought Wi-Fi
• various mounting positions

Application

• cleaning system
• chemical industry
• energy
• agriculture

Technical parameters

• flow range: 0,4 - 90 m3/h
• pipe size: DN20- DN80
• accuracy.: 2%
• power supply: 10 - 36VDC/ 500mA
• output: 4-20mA, RS 485, Wi-Fi
• IP54

Specification

Ultrasonic flowmeters a redesigned for flow measurement with fast and easy instalation. Ultrasonic flowmeter type F3 is for noninvasive instalation for pipes in ranges from DN20 to DN80 from PVC, carbon steel, stainless steel and copper. Instalation by attaching and thightening the 4 screws. Flowmeter F3 can be used at outdoor aplications due to protection rate IP54.

Flowmeter F3 can be used for measuring chilled water in HVAC system, cleaning system, supply system, residential water, farming irrigation system, etc.

Flowmeter F3 has output 4-20mA and own network support for Wi-Fi connection with support for cloud saving with ”Gentos iCloud” application for easy remote acces.
