Heating elements for ATEX
H.04.e - Air flow heating
Description
- functional sets for heating the flowing air
- optimized performance of heating elements
- optimized fan performance and auxiliary bridge
- standard / all-stainless design
Application
- petrochemical industry
- vertical chambers
- surface finishes
- room heating in an ATEX environment
Technical parameters
- power: up to 250kW
- voltage: 110V - 690V
- fan power: (battery x 4)
Specification

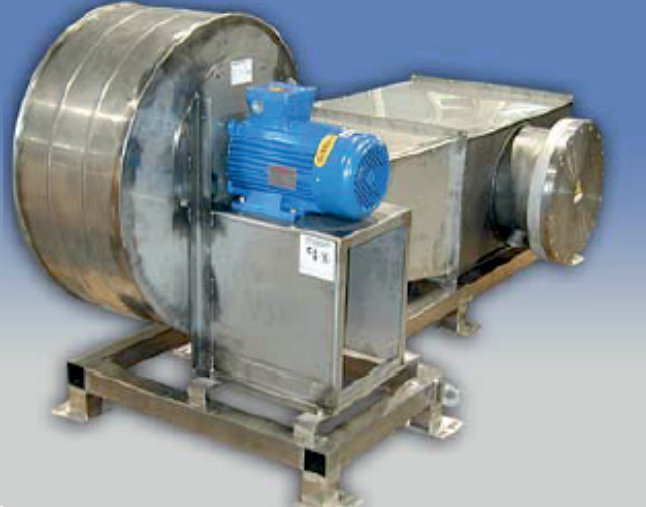

The hot-air electric unit is used to heat air or process gas by inserting it into air ducts or ventilation channels. The individual heating elements are ribbed to facilitate and improve the efficiency of heat exchange, but in the event that the heated medium conta ins suspended particles or aerosols, there is also a variant with smooth heating elements on offer, which prevent the settling of solid particles and subsequent reduction in performance (these and other technical and functional requirements are determined by the customer.
When creating a specific structure, sophisticated technical software is used to verify the thermodynamic performance, thanks to which it is possible to have an accurate analysis of the operating conditions of the thermalunit.
