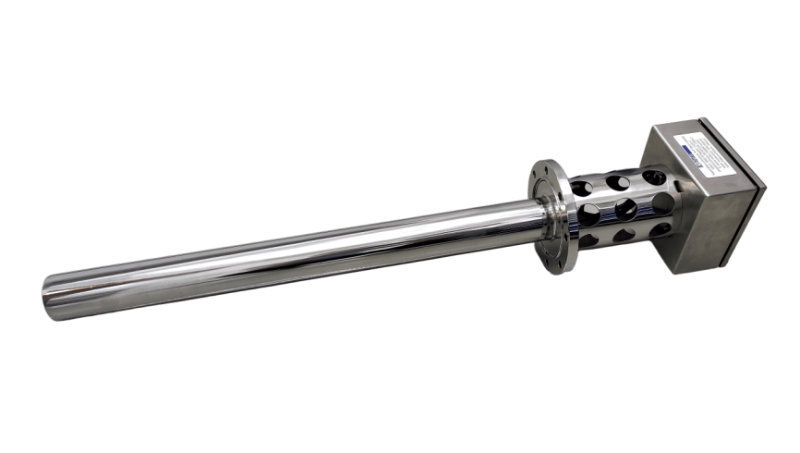

Immersion flanged heating element THTTKV
H.07. - with ceramic heating insert
Description
- case material: stainless steel AISI304, 316, 316L
- flange material: stainless steel AISI304, 316, 316L
- cooling neck material: AISI304 (1.4301)
- heating element: ceramic heating insert
- elektric wiring box, stainless steel, protection IP66
- robust design
- polished surface of the wetted part of the housing: Ra
Application
- food industry
- pharmaceutical industry
- mechanical engineering
- energy
- hydraulic industry
Technical parameters
- power: 500W - 12 000W
- power supply 1x230V, 1x400V, 3x230V, 3x400V
- process connection: flange DN65-DN250
- protection: IP66
Specification
Immersion flanged heating element with ceramic heating insert THTTKV are designed for direct heating of liquids. They are intended for more demanding applications that require a robust design with a separate electrical terminal block. Designed for applications requiring higher pressure loads, suitable for clean operations such as the pharmaceutical or food industry with a requirement for aseptic connection and a polished surface that will come into contact with the heated medium. The heater consists of 3 basic parts - an immersion tube with a ceramic insert, a process connection according to the customer's requirements in the range of DN65-250. A stainless steel distribution box, which is separated from the heating part by a cooling neck so that the electrical wiring is not burdened by inc reased temperature. THTTKV can be supplied in a version without regulation or with regulation.
