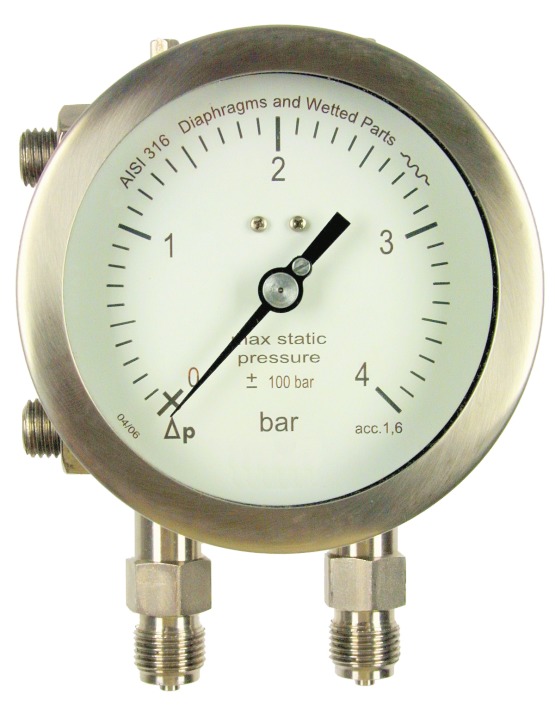

Differential pressure gauge 5670/5675/1620

B.1.25. - diameter 100, 160mm 2x bottom connection

Differential pressure gauge 5670/5675/1620

Download

Description

  • stainless steel case 17 240/1.4301
  • glass , safety glass inspection hole
  • connection 2x bottom
  • measure mechanism: stainless steel 17 348/1.4571
  • seals: NBR, FPM

Application

  • heating industry
  • air-conditioning
  • food industry
  • healthcare industry
  • chemical industry

Technical parameters

  • diameter: 100, 160mm
  • measure range: 0-25mbar...0-25bar
  • max. static pressure: 25bar, 100bar
  • connection threads: 2x G1/2; 2x G1/4
  • accuracy class: 1,6%
  • protection: IP 54, with glycerine filling IP 65

Specification

Differential pressure gauges 5670/5675/ 1620 are all-stainless steel heavy-duty manometers designed into heavy and demanding conditions.

They are produced in compliance with EN 837-3 standard. Differential pressure gauges 5670/5675 can be used for pressure measurements of all liquids, vapours and gases, that do not have a corrosive effect on copper alloys and stainless steel class 17 348/1.4571 as well as their viscosity allows the use of membrane measuring mechanism. Environment temperature -30 up to 60°C, medium temperature Tmax 60°C. Pressure gauges are supplied in sizes d=100, 160mm. They may be supplied with glycerine filling, electric contacts and ATEX environment design.

Other design options on request special scale design, connection threads, etc.


Technical specification are subject to change without prior notice. Images are for information only
