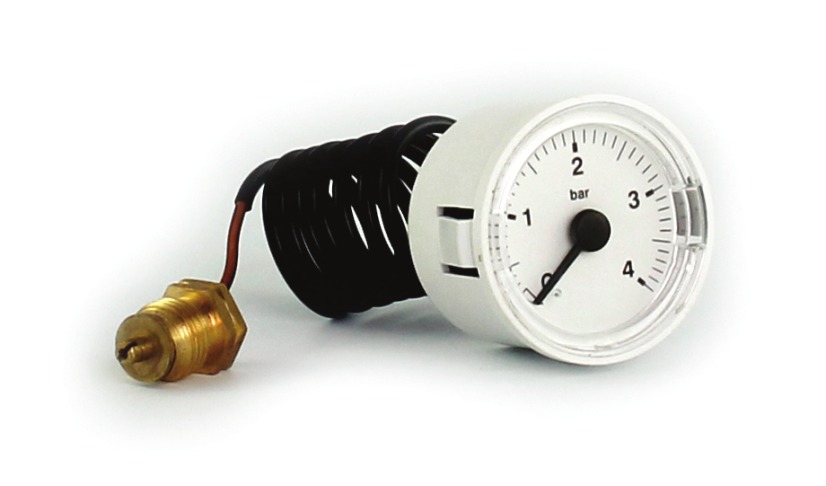

Round capillary pressure gauge 1037 Ø 37, 1040 Ø 40 1052 Ø 52mm

B.1.34. - capillary 1000mm

Download

• Datasheet

Description

• case: coloured plastic
• inspection hole: acrylate
• copper capillary with PVC protection
• panel mounting design
• spring latch for easy mounting

Application

• heating industry and sanitary technology
• heating management, power engineering
• light industry

Technical parameters

• case: 37, 40, 52mm
• measure ranges: 0-4, 6bar
• capillary length: 500, 1000, 1500, 2000, 3000mm
• thread: G1/4 (M12x1,5, M14x1)

Specification

Capillary pressure gauges are designed for all applications, where the place of measuring is not identical with the place of reading.

Thanks to wide range of designs they can be used in miscellaneous applications. Mainly used for boilers, heating systems and other operations with pressure measurement neccesity.

Maximum temperature of case surrounding is 70°C. Other options of design on individual request special scale design, connection thread, etc.
