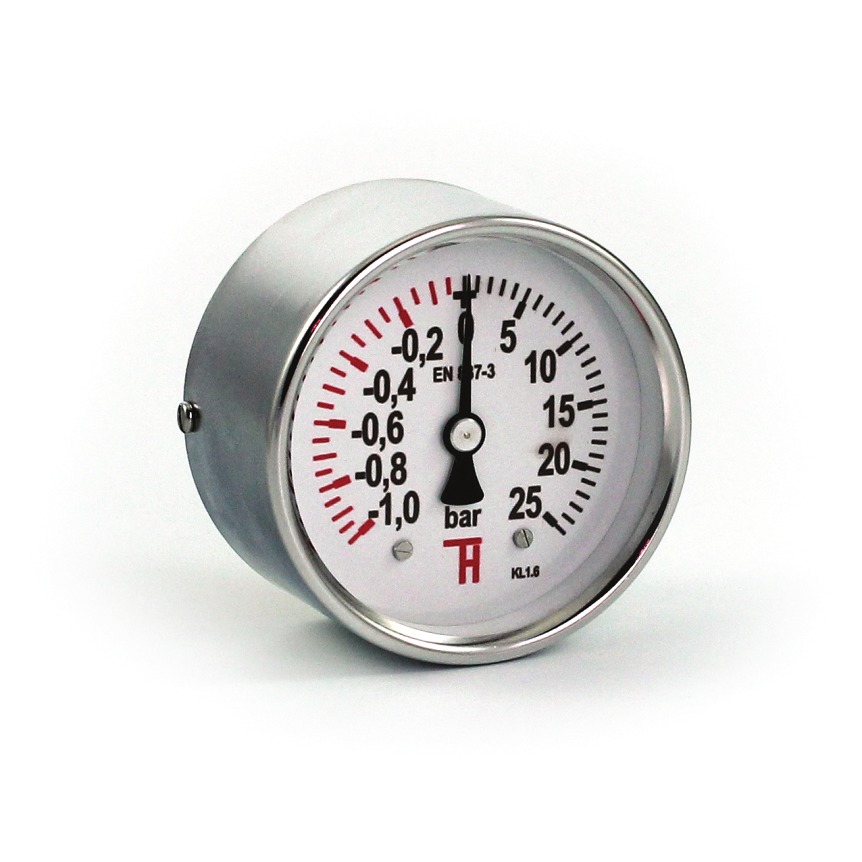

Pressure gauge 329

B.1.41. - diameter 80 mm back connection

Pressure gauge 329



  • stainless steel /chrom. steel case
  • plexiglass/safety glass inspection hole
  • back connection CuZn and copper alloys
  • measure mechanism CuZn and copper alloys
  • overload 1,3x


  • firefighting
  • tank trucks and cisterns
  • road cleaning vehicles
  • suction vehicles

Technical parameters

  • diameter: 80mm
  • measure ranges: -1+25bar; 0-25bar
  • connection threads: M20x1,5 or G1/2
  • accuracy class: 2,5%
  • protection: -IP 54


Pressure gauges type 329 are produced in compliance with EN837-3 standard. Mainly used for simple pressure measurement of liquids, vapour and gases that do not have corrosive effect on copper alloys. Pressure gauges are designed into cisterns, tank trucks an fire fighting vehicles. They are to be placed onto pumps and suction devices. Equipped to be used in more demanding conditions.

Resistant to shocks, machine vibrations and pulses. Their heavyduty design ensures high functionality, safety and long life-time. Environment temperature -25 up to 60°C, medium temperature -20 up to 80°C. Other design options on individual request - special scale design, connection threads, lazy needle, red line, mirror dial, stainless steel front flange,...

Technical specification are subject to change without prior notice. Images are for information only
