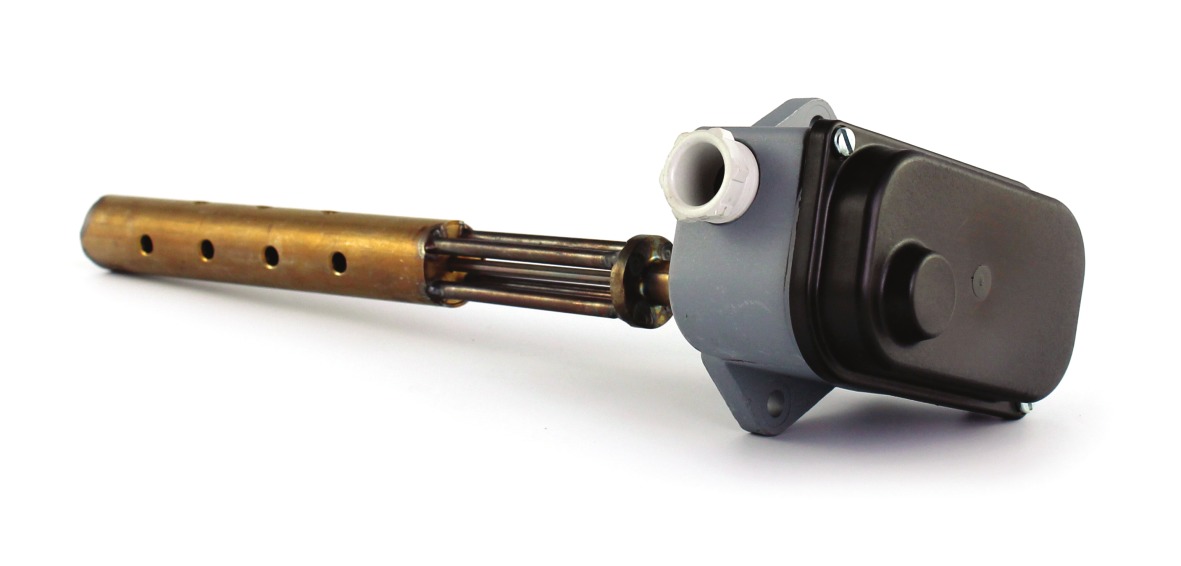

Stem termostat series TH 260, TH 261
C.1.04. - protection IP 00 load up to 15A
Description
- thermostats consist of two main parts: temperature sensor and switching head
- temperature-dependent element is the stem, consisting of dilating tube made of anti-corrosive heat-resistant steel
- regulatory knob for temperature setting is closed in a waterproof head and may be arrested
Technical parameters
- regulatory range: 200-400°C
- switching temperature difference: 5-20K
- setting accuracy: 10%
- contact load: 0,5A, 120V ss (TH 260) 15A, 250V st (TH 261)
- permitted head temperature: 120°C
- permitted stem temperature: 500°C
- protection: IP 44
Specification
Stem thermostats TH 260, TH 261 are temperature-dependant singlepole switches, designed for protection against excessive exhaust gas temperature of diesel aggregate used for diesel-electric train heating. They may also be used for other thermoregulation.
Core of these thermostats is a reliable mechanical system, that has no power consumption itself. They are known for significantly low operational and maintenance costs compared to electric systems.
Temperature dilation of the tube is transfered by invar bar and lever gearing onto the switching mechanism, which is enclosed in a waterproof head. There are two feet with screw holes designated for thermostat mounting.
Technical specification are subject to change without prior notice. Images are for information only
