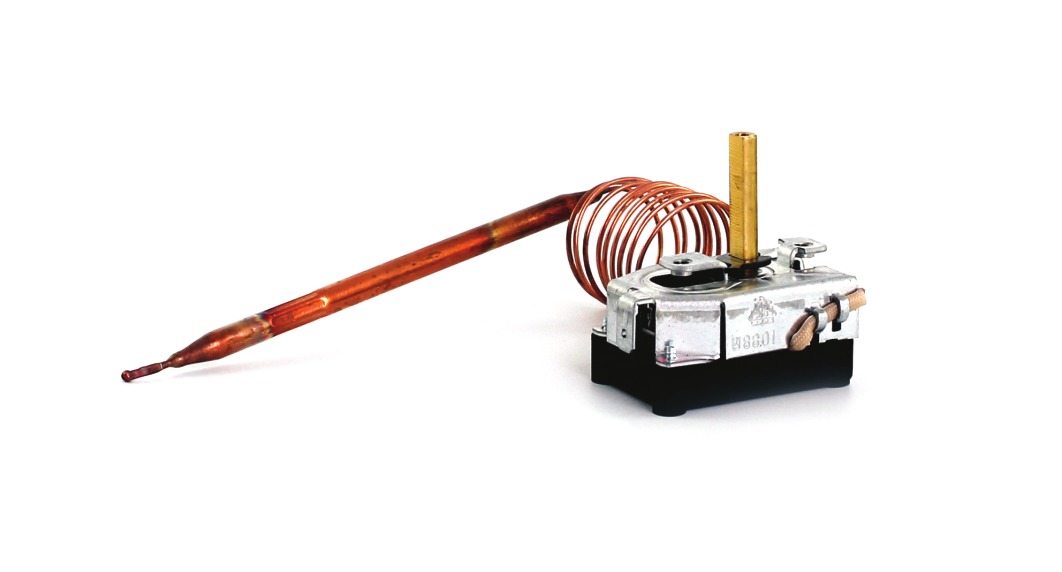

Thermoregulator series RT8801, RT8803 RT8804
C.1.08. - capillary length 1000mm load up to 16A
Description
- design: switch off or throw-over contact
- connecting terminals: flat pins 6,3x0,8 according to ČSN EN 612 10
- number of terminals: 2/3
Technical parameters
- regulatory range: 0-40°C (RT 8801) 7-77°C (RT 8803) 50-190, 50-250, 50-320°C (RT 8804)
- switch off design: RTxx.01, RTxx.02
- throw-over design: RTxx.021
- switching temperature difference: 1-3K, 2-5K, 4-10K
- nominal current: 16(2,6)A
- nominal voltage: 240V
- max. sensor temperature: 50°C (RT 8801) 90°C (RT 8803) 330°C (RT 8804)
- protection: IP 00, RT built-in
Specification
Thermoregulators (further only RT) are designed for thermoregulation in devices heated by electric alternate current, such as water heaters and electric ovens. RT is not to be used as a switch.
RT8801, RT8803, RT8804 are singlepole capillary thermoregulators based on principle of fluid expansibility.
RT consists of two main parts switching unit and capillary temperature sensor. There is a protection grouding pin on the cover. The regulated temperature may be set by the user within the regulatory range, RT 8803 may also be used as an antifreeze protection.
RT installation is performed by two M4 screws.
Technical specification are subject to change without prior notice. Images are for information only
