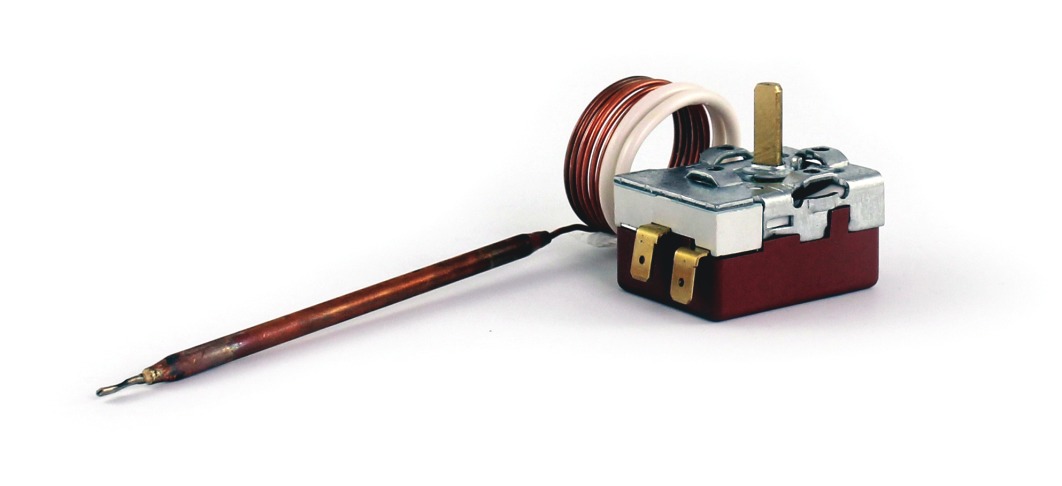

Single-phase capillary thermostat series MMG
C.1.09. - capillary length 1000mm load up to 20A
Description
- design: switch-off or throw-over
- connection terminal: flat pins 6,3x0,8 according to ČSN EN 612 10
- sensor material: copper
- capillary: copper with PVC protection
Technical parameters
- regulatory range: 7-77, 20-127, 50-190°C
- sensor dimensions: 5x132mm, 6,5x113mm, 4x168mm
- capillary dimensions: 1,4x920mm; 1,4x550mm; 1x1180mm
- switching temperature difference: 4K, 6K
- switching range: 16A, 240V
- nominal voltage: 250V
- max. environment temperature: 80°C
- protection: IP 00
Specification
Single-phase capillary thermostats MMG are designed mainly for use in hot water boilers, washing machines, electric cookers, ovens and other appliances equipped with automatic thermoregulation.
May be used for all mediums, where it is possible to ensure correct heat transfer between the medium and the sensor.
Technical specification are subject to change without prior notice. Images are for information only
