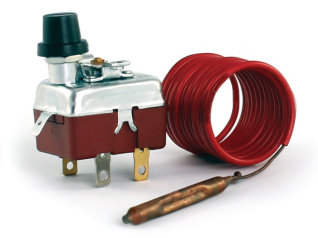

Capillary thermal fuse series WPR 200, 200 B
C.1.11b - manual reset
Description
- design: manual reset
- capillary material: copper with PVC protection
- sensor material: copper
Technical parameters
- temperature range: 90-110°C
- setting accuracy: 0-6°C; ±3°C
- switching difference: 20±5°C
- max. sensor temperature: 135°C
- capillary length: 1500mm
- contact load: c-2: 16A 250V AC; 6A 400V AC c-1: 4A 250V AC; 1A 400V AC
Specification
Capillary thermal fuses WPR 200, 200 B are used to protect the electrical circuit, in case of overload they automatically break the circuit. It thus protects the appliance from damage, especially in devices used for heating with electric alternating current (boilers, boilers and similar devices).
The fuses do not serve as a Power Button switch! For versions with switching contacts, the desired function can be selected: switching or opening.
In addition, the fuses are supplied in a version with a fixed or adjustable temperature.WPR 200/200 B, are equipped with a manual reset, where reconnection is possible only mechanically by pressing the reset button.
Technical specification are subject to change without prior notice. Images are for information only
