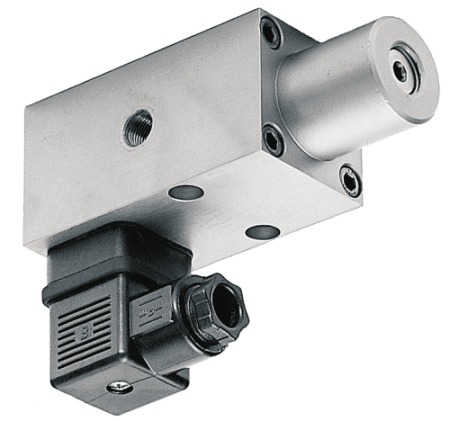

Pressure difference switch series 700

D.1.05. - throw-over contact max. 250V

Download

• Datasheet

Description

• working element: membrane with spring, NBR, EPDM, Viton
• switching element: throw-over contact SW
• installation position: any
• material: brass

Application

• heating industry
• hydraulics
• air-conditioning
• cooling systems

Technical parameters

• differential pressure measuing ranges: 0,3-2bar, 0,5-3bar, 2-10bar, 5-50bar
• max. static pressure: 10, 250bar
• connection thread: 2x G1/8
• hysteresis: 15-20%
• max. el. contact load: 250V AC / 5A, 250V DC / 0,25A ­ resistance and inductive load
• el. connection: conector DIN 43650 with output Pg9
• protection: IP 65

Specification

Pressure difference switch series 700 with throw-over contact (SW) membrane and piston, designed for wide range of applications. Used for gases and liquid pressure measuring within the temperature range -25+85°C, always according to type of membrane, mainly air, water, oil emulsion, hydraulic oils and other medium on request. Max. voltage 250V design max. 5A.

Standard connection thread 2x G1/8" (material brass alternatively stainless steel). Membrane material: NBR (EPDM, Viton, CR).
