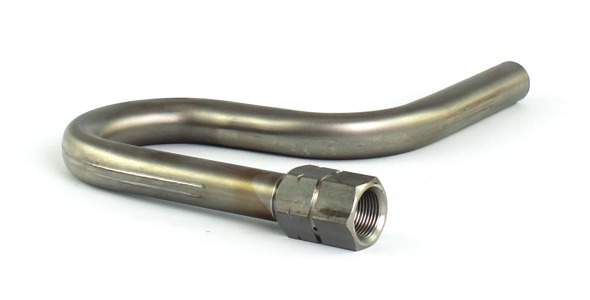

Condensation loop
E.03. - ČSN 137530 PN 250
Description
- design: A - bent for pin B - bent for welding C - coiled for pin D -coiled for welding
- material: structural carbon steel 11 523, corrosion proof steel 17 027 individual
- installation: any position
- supplied with right-/left connection
Application
- heating industry
- petrochemically industry
- power engineering
Technical parameters
- connection thread - M20x1,5, G1/2
- Tmax 300(400)°C
- PN 25MPa
Specification
Condensation loops are produced in accordance with EN837-2 standards. Condensation loops are used for connection and protection of pressure gauges against harmful effects and high temperature of measured medium, for working pressures and temperatures.
Supplied in versions bent for welding or pin or coiled for welding or pin. Design must be chosen according to position of installation and with regard to condensation needs. Material either carbon steel or stainless steel (17 027). They may be supplied in other materials, mainly made of other steel classes 11, 12, 15, steel PG, all on request.
Condensation loops are tested according to ČSN 13 3060, part 2 only water testing for tightness impermeability.
Technical specification are subject to change without prior notice. Images are for information only
