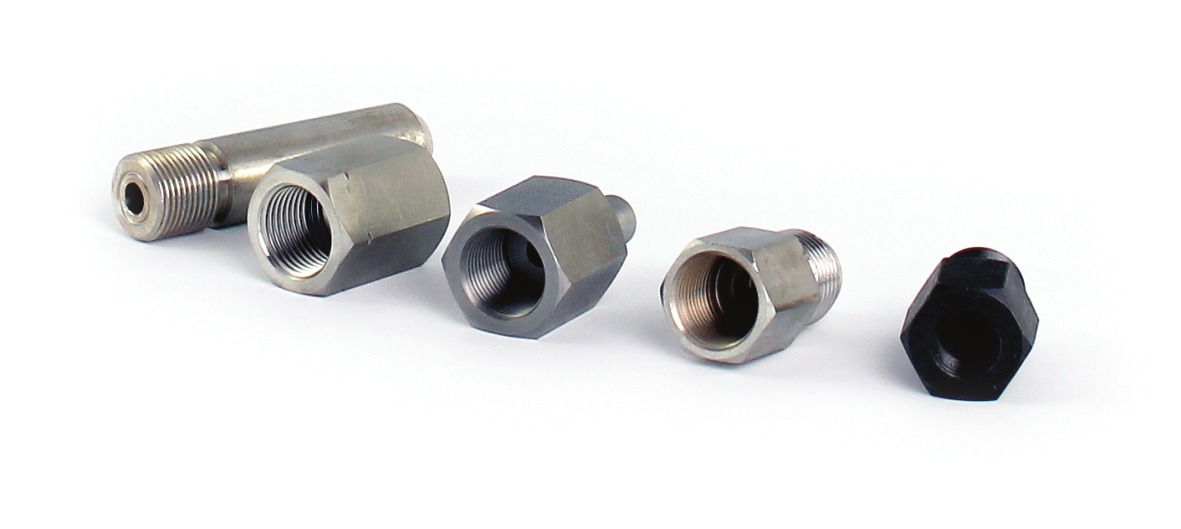

Manometric connectors and adapters
E.04. - steel, stainless steel, brass Tmax 300°C, PN 630
Description
- Adaptive manometric connector type 13 75 24.A
M right inner / M left inner
G inner right / G left inner - Sliding nut type 13 75 24.B
Nipple for welding nut - Nipple for welding type 13 75 24.C
Sliding nut nipple - Piece for welding type 13 75 24.D
Welding piece, use with ,,A" adapter, M left or right - Adaptive manometric connector type 13 75 24.E
M right inner / G right outer
G right inner / M right outer - Adaptive manometric connector type 13 75 24. F
M right inner / G right inner - Adaptive socket connector 13 75 24. G
M left inner / G right inner
Technical parameters
- PN 63MPa, 50MPa
- Tmax: 200°C, 300°C
Specification
Pressure gauge connectors and adapters are produced in accordance with standard EN837-2. Connectors and adapters are designed for connection and reduction of pressure gauges with manometric cocks and valves.
Supplied in materials: carbon steel, stainless steel and brass.
Technical specification are subject to change without prior notice. Images are for information only
