Flowmeter LZM-G

F.03. - float flowmeter rate of flow: 0,5 l/h - 750 l/h liquid 1 mł/h - 1400 mł/h gas

Download

• Datasheet

Description

• case: plastic (PC, PSU)
• connection material: plastic,PVC, polypropylen brass, stainless steel, chromium-plated plated brass
• float material: stainless steel
• guide rod material: stainless steel
• sealing: O-ring NBR or Al
• installation: only vertical
• option of liquid(water) and gases (air) measuring

Technical parameters

• design: 15G, 20G, 25G, 40G, 50G
• measuring ranges: 0,5-4, 1-7, 1,8-18, 4-36, 10-70, 20-100, 20-110, 20-150, 80-220, 80-300, 150-450, 190-560, 220-750 l/min (water) 1-10, 1,6-16, 4-40, 6-60, 16-160, 25-250, 35-350, 80-400, 10-500, 120-600, 30-850, 400-1200, 500-1400 m3/h (air)
• T max: 90°C
• PN: 6 bar
• connection thread: G1/2 (G3/4, G1, G2)
• accuracy class: 4%

Specification

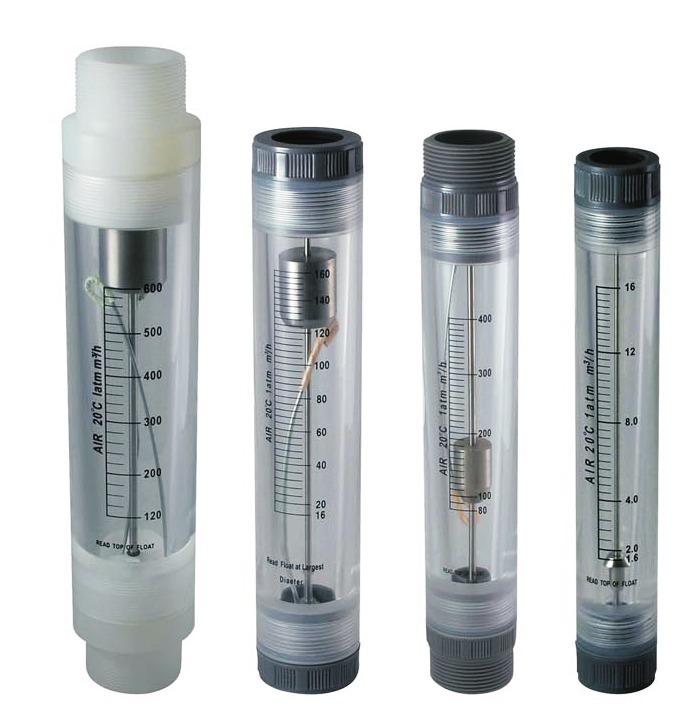

Tube-float flowmeters LZM-G are threaded, tube flowmeters, which are used in applications, where it is necessary to measure instantaneous flow. Flowmeters are designed for liquid (water) or gases (air) measurements.

Flowmeter works on principle of float with orifice plate inside a closed cylindric measuring tube.

Flowmeters are eqipped with scale liter/min. Connection of the flowmeter is arranged as inner or outer thread G1/2 - 1". Vertical instalation only.
