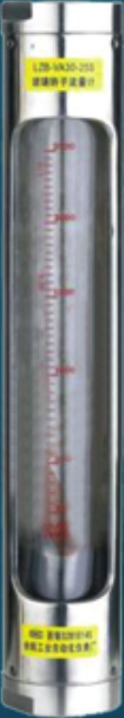

Flowmeter LZB-VA/-FA

F.07. - rate of flow: 4 l/h - 16000 l/h liquid 0,12 m3/h - 300 m3/h gas

Download

• Datasheet

Description

• case: surface-treated steel or stainless steel
• connection material: surface-treated steel or stainless steel
• flowmeters core: silicate glass
• sealing and other hydrophilic parts: teflon
• installation: only vertical
• option of liquid(water) and gases (air) measuring
• design: VA (threaded) or FA (flange)

Application

• power engineering
• food industry
• mechanical engineering
• agriculture
• automation
• petrochemical industry

Technical parameters

• diameter: DN 15, 25, 40, 50 mm
• measuring range: 4 - 40l/h... 4000-16000 l/h (water) 0,12-1,2m3/h ... 30-300m3/h (air)
• T max: -20+200°C
• PN: 0,7MPa; 0,9MPa, 1MPa
• thread: G1/2, G1, G1 ˝,G2"

Specification

Float flowmeters LZB-VA/-FA in glass design are used for instantaneous flow measurements of aggressive liquids and gases. The core of this flowmeter is made of silicate glass, case is made of surface-treated steel or stainless steel. Other hydrophilic parts of the flowmeter are made of teflon. Such construction ensures corrosion resistance of this series.

Flowmeters are suitable for measurements of various types of acids and alcalis, oxidants and other corrosive substances, such as chemicals, kerosene, fertilizers, etc. Vertical installation only.
