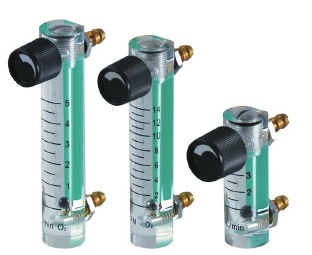

Flowmeter LZM-6T O2
F.10. - with valve for oxygen measurements ranges: 0 14l/min
Description
- case: acrylate
- connector material: ABS, brass, chromium-plated brass
- float: acrylate, stainless steel
- sealing: O-ring(rubber)
- control valve
- installation: only vertical
- option of gas measurement(oxygen)
Application
- food industry
- mechanical engineering
- air-conditioning
- power engineering
Technical parameters
- model: LZM-6T O2
- measure range: 1-3l/min... 0,5-14l/min
- thread: M10x1mm or 9/16-18
- accuracy class: 5%
Specification
Flowmeters LZM-6T O2 are used for flow control and measurements of oxygen and its concentrations. Mediums flow may be regulated by a valve.
This model is suitable for panel mounting. Produced in accuracy class 5%. Float, connector and valve can be made of various materials, optional special scale design for oxygen, etc.
Install into vertical position only.
Technical specification are subject to change without prior notice. Images are for information only
