Galvanic heating element
H.03. - Type - 1701 Type - 1705 shaped galvanic heating element
Description
1701 - VERTICALLY IMMERSIBLE HEATING ELEMENTS
- rods material: stainless steel 17 348/1.4571, stainless steel 17 240/1.4301, porcelain, teflon, titanium, boron-silica glass
1705 - SHAPED HEATING ELEMENTS
- rods material: stainless steel 17 240/1.4301, stainless steel 17 348/1.4571, stainless steel teflon-plated, individual
- heating rods profile D8,5mm, 11,5x6,2mm
- power on individual requirements
Application
- food industry
- mechanical engineering
- power engineering
- heating industry
- hydraulics
Technical parameters
- power: 1 100, 1 500, 1 800, 3 000, 4 500 (1701), on request (1705)
- supply: 3x400V (1701), on request (1705)
- protection: IP 65 (1701)
Specification

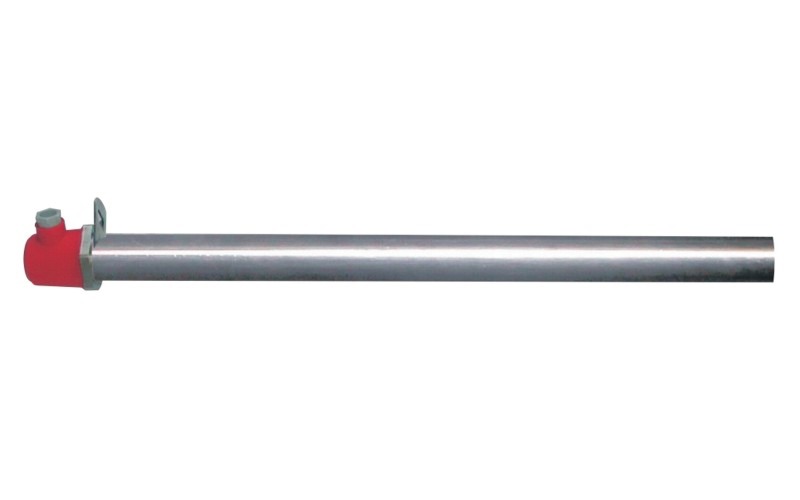

Vertical galvanic heating elements (1701) consist of coating (silica glass or noble steel), ceramic heating lining and water-proof el. terminal board. On the coating there is always a mark stating the minimum submersion, if there is no such mark, the element must be fully immersed in the bath during heating operation. El. terminal board is made of polypropylen, waterproof (IP 65) and resistant to heated medium as well as its vapour.
Shaped galvanic heating elements (1705) are shaped from long heating rods of oval or circular cross-section. The bottom heating part may as well follow an atypical shape of the tank. Outlets may be covered by PE head, Al box or rubberized head smoothly changing into cable.
