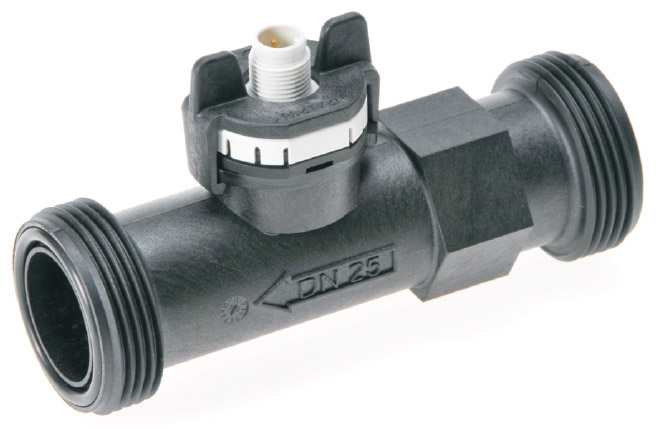

Flowmeter LVB

F.11. - vortex flowmeter DN6...25, 0,5l-150l/min

Download

• Datasheet

Description

• water volumetric flow meter
• working on the principle of vortex
• for mounting into piping
• any posititon of installation
• low pressure lost
• the possibility of atypical version - clamp connection, high pressure version...

Application

• petrochemical industry
• chemical industry
• food industry
• metallurgy

Technical parameters

• DN: 6, 8, 10, 15, 20, 25
• measuring range from 0,5 l/min to 150 l/min
• measurement accurancy: 50...100%FS <2%; up to 50%FS <1%
• PN: 12bar (+40°C), 6bar (+100°C)
• environment temperature: -15+85°C
• case: PA6T/6I (40%GF)
• sensor: ETFE
• seal: EPDM
• output: analog (4-20mA) or pulse
• IP 65

Specification

Basic series of flowmeters LVB offer compact, easy and affordable price solution for monitoring the flow or consumption.

Flowmeters are working on the principle of vortex, LVB series are using for measurement the flow of water and low viscous liquids.

Flowmeters can be used for a wide range of media in the temperature range up to 125°C.

They can be used in petochemical, chemical and food industry and also in metallurgy and scientific research for measurement and regulation.

It is possible to choose analog or pulse output.

Analog output signal is standard 4-20mA.

Level of protection is IP 65.
