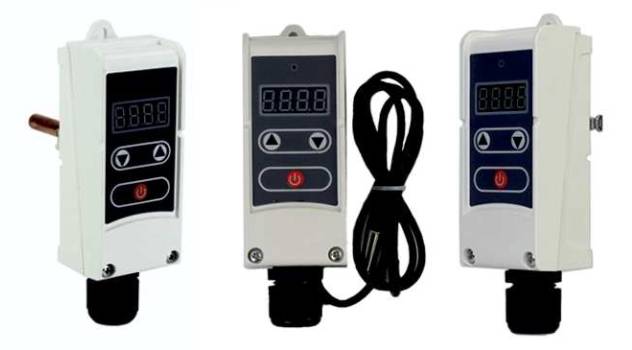

Digital thermostat series THDK, THDP, THDS
C.1.25 - capillary, surface-mouting, immersion
Description
- design: capillary, surface-mouting, immersion
- mounting: according to the model
- placement: common environment
Application
- temperature range: 5-90°C (THDK), 5-80°C (THDP, THDS)
- temperature difference: ±1,5°C
- contact load: 10(1,5)A/250V
- case: plastic
- protection: IP 40
Technical parameters
- power engineering
- hydraulics
- heating industry
Specification
Digital thermostats are most often used in applications where the emphasis is on appearance and simple operation, or where it is advisable to avoid direct contact with the contacts. The main advantages include simple operation, assembly and reliability.
They are most often used for sensing the temperature of water in domestic hot water tanks or in heating systems. Thermostats THDK (capillary), THDP (touch), THDS (stem) are equipped with the function of setting the switching difference and the function of switching the opening / switching mode (heating / cooling). Due to their wider regulation range, thermostats are also suitable for applications where it is necessary to regulate temperatures close to zero. The higher IP 40 protection is also an advantage.
