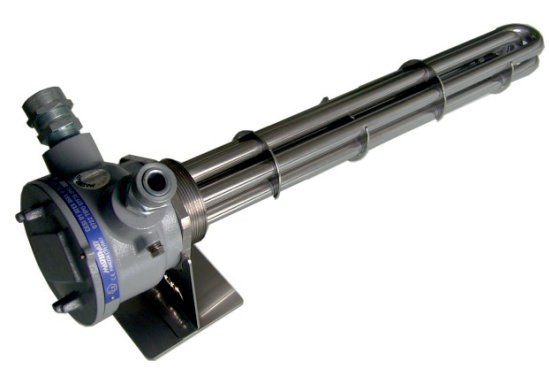

Heating elements for ATEX
H.04.b - type FP flanged
Description
- rods: Incoloy 800, Inconel 625, stainless steel 17346/1.4401, 17 349/ 1.4404, 17 248/ 1.4541
- flange : stainless steel 17 344/1.4401, 17 349/1.4404
- Atex in accordance with ATEX EX 11 2 G/D
Application
- petrochemical industry
- engineering
- power engineering
- fuel heating
- surface finishes / treatments
Technical parameters
- power: up to 1000kW
- voltage: 48V - 690V
- flange diameter: 150 - 1000mm
- protection: IP 66/IP 67
- temperature class: T1÷T6
- ambient temperature: -60 + 70°C
- max. immersion length: 3665mm
Specification
Flanged heaters are designed for heating static or flowing heatkutin in tanks or in pipes whichserves for the transport of specific media. Body design always takes in to account individualdual customer requirements based onof which is defined: specific power anumber of heating elements, properties ofruby, the maximum temperature of the mantle with overnew definition of "thermal safety" and following that the use of specific construction materials with correspondingspatial dimension of the heating elements.Design of flanged heaters withwith replaceable inner inserts inEx design - single layer. This solutionyou will especially appreciate it in the case of heatingoils and corrosive liquids. Heaters withheaters attached to the flangeusing threaded fittings with screw-with a torx head. The advantage of this solution(with a case that is located indistance from the flange) is thatthat the eventual leakage of the process fluidis dispersed into the external environmentnot into the electrical terminal.
