Heating elements for ATEX

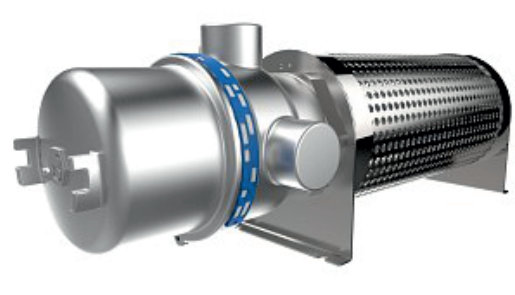

H.04.c - type combo spatial
Description
- rods: AISI316 Ti, dia.16mm
- desing: protective grid made of galvanized or stainless steel AISI 304
- Atex in accordance with ATEX94/9EC
Application
- petrochemical industry
- mining industry
- power engineering
- surface finishes / treatments
Technical parameters
- power: 500, 800, 1000, 1200, 1500, 1600, 2000, 3000, 4000W
- voltage: 48V - 690V
- connection for wiring :2x 1/2"NPT (1x1/2"NPT +1x3/4"NPT for 3kW)
- protection: IP 65/IP 68
- temperature class: T3
- ambient temperature: -60/ +70°C
Specification
The spatial heating element is specially designed for heating small rooms up to 6÷8 m3, where it is desirable to prevent surface condensation of steam.
The heaters are designed for heating static air, they are characterized by a very low specific power (0.66 W / cm2), so that the surface temperature of the heating elements is limited in the presence of natural flow.
For this reason, these products are not suitable for heating large rooms with a complicated floor plan, as it is not possible to ensure that the air temperature is distributed evenly throughout the environment.
If you want to prevent condensation in rooms that have a complex shape and a volume greater than 6÷8 m3, it is advisable to use air heaters equipped with a fan
